NTC 3500K 3k Temp Sensor Probe For Container Loading Vehicle In Port

  • 1
  • 2

Brand Name : JP SENSOR

Model Number : MFP

Certification : ISO9001, RoHS

Place of Origin : Anhui, China

MOQ : 1000 Pieces

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 200 Million per Year

Delivery Time : 2 Weeks

Packaging Details : Carton Packing

R25℃ : 3kΩ

B25/85 : 3500K

Thread of probe : M10

Application : Engineering equipment

Connector : DT04-2P

Customization : Yes

Contact Now

NTC 3500K 3k Temp Sensor Probe For Container Loading Vehicle In Port

Product Description:

NTC 3500K 3k Temp Sensor Probe For Container Loading Vehicle In Port is used for temperature measurement of construction machinery vehicles, mainly used for port container loading vehicles. The probe is made of stainless steel, the thread is M10, and the connector is DT04-2P.

Features:

Comply with RoHS standard

R25℃=3kΩ

B25/85=3500K

Easy to install

Highly reliable

The probe is stainless steel and anti-erosion

Application:

Engineering equipment

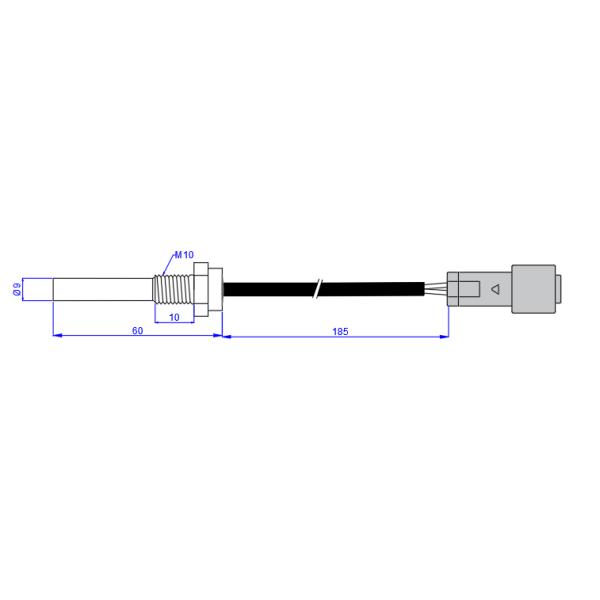

Structure and Dimensions:(unit: mm)

NTC 3500K 3k Temp Sensor Probe For Container Loading Vehicle In Port

Electrical Specification:

Rec. at 25℃(kΩ)+A2:G25+A2:G25 Beta value (In air) Pmax(mW) δ(mW/℃) Thermal time constant τ(sec.) Operating Temperature Range TL-TH(℃) Total length
L(mm)
1 B25/85=3435 Approx.60 Max.3.0 Max.20 -40℃~125℃ 8~100
1.5 B25/50=3850
1.5 B25/50=3935
2 B25/85=3550
2 B25/85=3935
2.08 B25/85=3580
2.2 B25/50=3935
3 B25/50=3950
5 B25/50=3470
5 B25/50=3950
8 B25/100=3988
10 B25/85=3435
10 B25/50=3470
10 B25/50=3935
10 B25/50=3950
20 B25/50=3950
47 B25/50=3950
50 B25/50=3950
50 B25/50=4200
100 B25/50=4200
200 B25/50=4200
500 B25/50=4450
1000 B25/85=4600

Other Product Images:

NTC 3500K 3k Temp Sensor Probe For Container Loading Vehicle In PortNTC 3500K 3k Temp Sensor Probe For Container Loading Vehicle In PortNTC 3500K 3k Temp Sensor Probe For Container Loading Vehicle In Port
